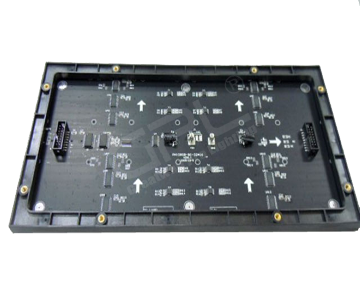

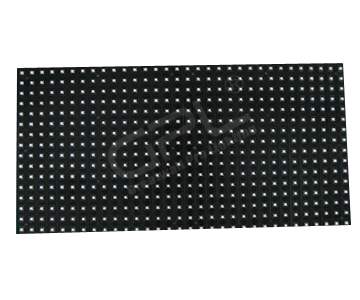

Product model:P10-4S

Module size:320mm*160mm

Pixel pitch:10mm

Pixel density:10000dots/m2

Pixel configuration:smd 3in1

Module resolution:32dots(W)*16dots(H):Maximum power consumption 15W

Module thickness:14mm

Module weight:0.45kg

Driving method:Constant current driving

Scan mode:1/4 scan

Interface type:HUB75

Brightness:≥1500cd/m2

The specifications of cabinet

Cabinet size:960mm*960mm

Module quantity:18pcs

Power supply:5V/40A *3pcs

Cabinet resolution:96*96dots

Optimal viewing distance:10m～50m

Optimal viewing angle:160°(W) 120°(H)

Temperature:Storage:-35℃～+85℃

                          Working:-20℃～+50℃

System operating humility:10%-95%

The specifications of power supply

Operating voltage:AC220V±10%

Average power consumption:150W/㎡

Maximum power consumption:≤900W/㎡

Current:≤20mA(single LED)

The specifications of control system

Computer:Pentium4 or above

Operating system:WIN98/2000/NT/XP

Control model:Synchronization control

The specifications of the main technical parameters

Driving device:Constant current driving

Refresh rate:≥400Hz

Grey scale:RGB each 256 grade, can display 16.7M colors)

MTBF:≥9000hours

Power switch:Automatic switch

Display mode:800*600/1024*768
