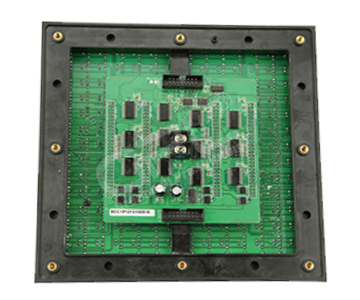

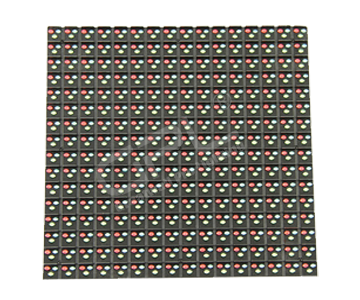

Product model:  P12 full color module

Module size: 192mm*192mm

Pixel pitch: 12mm

Pixel density: 6944dots/m2

Pixel configuration: 1R1G1B

Module resolution: 16dots(W)*16dots(H)

Maximum power consumption:  20W

Module thickness: 2.5cm

Module weight: 0.55kg

Driving method: Constant current driving

Scan mode: 1/4 scan

Interface type : HUB75

Brightness : ≥8000cd/m2

The specifications of cabinet

Cabinet size: 960mm*960mm

Module quantity: 25pcs

Power supply : 5V/40A 5V/60A

Cabinet resolution: 80*80dots

Optimal viewing distance :12m～50m

Optimal viewing angle: 160°(W) 120°(H)

Temperature Storage:-35℃～+85℃

Working:-20℃～+50℃

System operating humility: 10%-95%

The specifications of power supply

Operating voltage: AC220V±10%

Average power consumption: 350W/H

Maximum power consumption:  ≤600W/㎡

Current: ≤20mA(single LED)

The specifications of control system

Computer: Pentium4 or above

Operating system: WIN98/2000/NT/XP

Control model: Synchronization control

The specifications of the main technical parameters

Driving device: Constant current driving

Refresh rate: ≥600Hz

Grey scale:RGB each 256 grade, can display 16.7M colors)

MTBF: ≥9000hours

Power switch: Automatic switch

Display mode: 800*600/1024*768/1280*900
