Indoor led screen P4 module

    GPL-SP04™

SPECIFICATIONS
EFFECT PICTURE
VIDEO
ACCESSORIES

Product model: P4-16S

Module size :256mm*128mm

Pixel pitch : 4mm

Pixel density: 62500dots/m2

Pixel configuration:smd 3in1

Module resolution: 64dots(W)*32dots(H)

Maximum power consumption:18W

Module thickness: 13.07mm

Module weight :0.18kg

Driving method:Constant current driving

Scan mode:1/16 scan

Interface type:HUB75-A

Brightness: ≥1500cd/m2

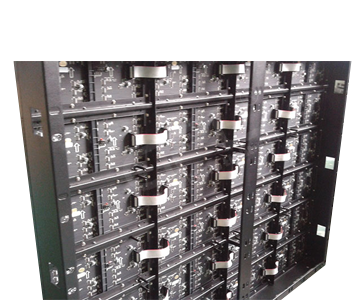

The specifications of cabinet

Cabinet size: 512mm*512mm

Module quantity: 8pcs

Power supply:5V/40A *2pcs

Cabinet resolution: 128*128dots

Optimal viewing distance: 4m~20m

Optimal viewing angle: 160°(W) 120°(H)

Temperature Storage:-35℃~+85℃

Working:-20℃~+50℃

System operating humility:10%-95%

The specifications of power supply

Operating voltage: AC220V±10%

Average power consumption: 85W/㎡

Maximum power consumption: ≤160W/㎡

Current: ≤20mA(single LED)

The specifications of control system

Computer: Pentium4 or above

Operating system: WIN98/2000/NT/XP

Control model:  Synchronization control

The specifications of the main technical parameters

Driving device: Constant current driving

Refresh rate: ≥400Hz

Grey scale: RGB each 256 grade, can display 16.7M colors

MTBF: ≥9000hours

Power switch: Automatic switch

Display mode: 800*600/1024*768
